Deep Pro Bracket Installation Instructions

Important Safety Instructions

When installing brackets, please use appropriate safety equipment, and ensure you are familiar with assembling drawer slides.

Assembly View

Installation is very straight forward. Included with every set of brackets is a bag of hardware. The hardware includes the following:

- M4 8mm fasteners

- M4 Washers

- M4 Nuts


You can choose to switch out the hardware if desired.


Assembly


To assemble these brackets with your drawer slides (not included), place the bracket against the drawer slide as depicted to the right. Insert the screw through the drawer slide and through the bracket. Add a washer, then the nut to fasten to the slides. The opening on the bracket may be tight, press firmly to get the screw to set.

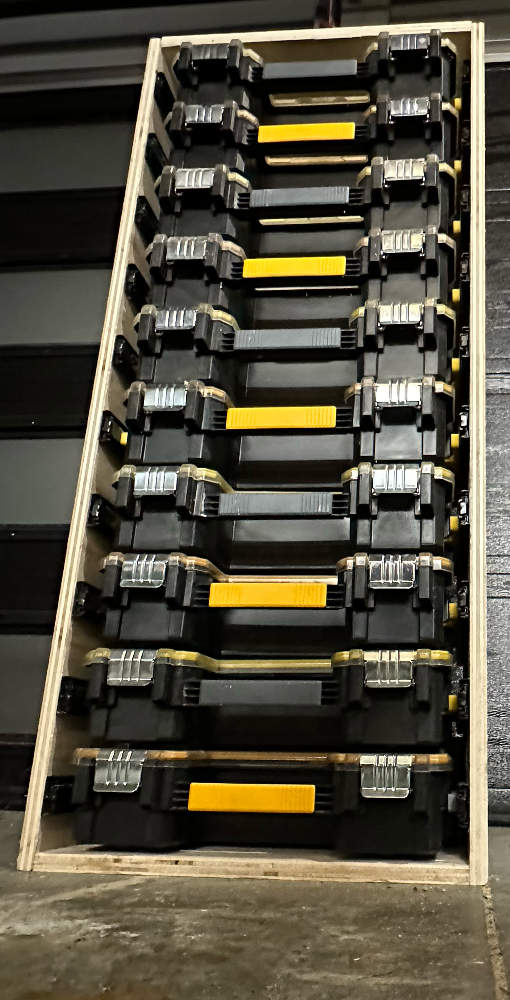

Cabinet Dimensions

These dimensions are for a cabinet built with the following brackets. If you are using other brackets, your dimensions will be adjusted. Brackets: https://amzn.to/3zsCTsi
