Router Mount Installation Instructions

Important Safety Instructions

Important: Follow all safety instructions and make sure batteries are removed prior to installation.

BE SURE to inspect attachment screws on side of body or depth stop before each use. This tool generates significant vibrations that could loosen screws over time.

Use all necessary safety equipment when using this attachment and an oscillating tool, use both hands for best results. Anti-slip pad can be replaced with high friction tape or rubber gasket if desired.

Wall Mounting

Step 1: Do Not over-tighten the screws, screw until the holder is flush with the mounting surface.

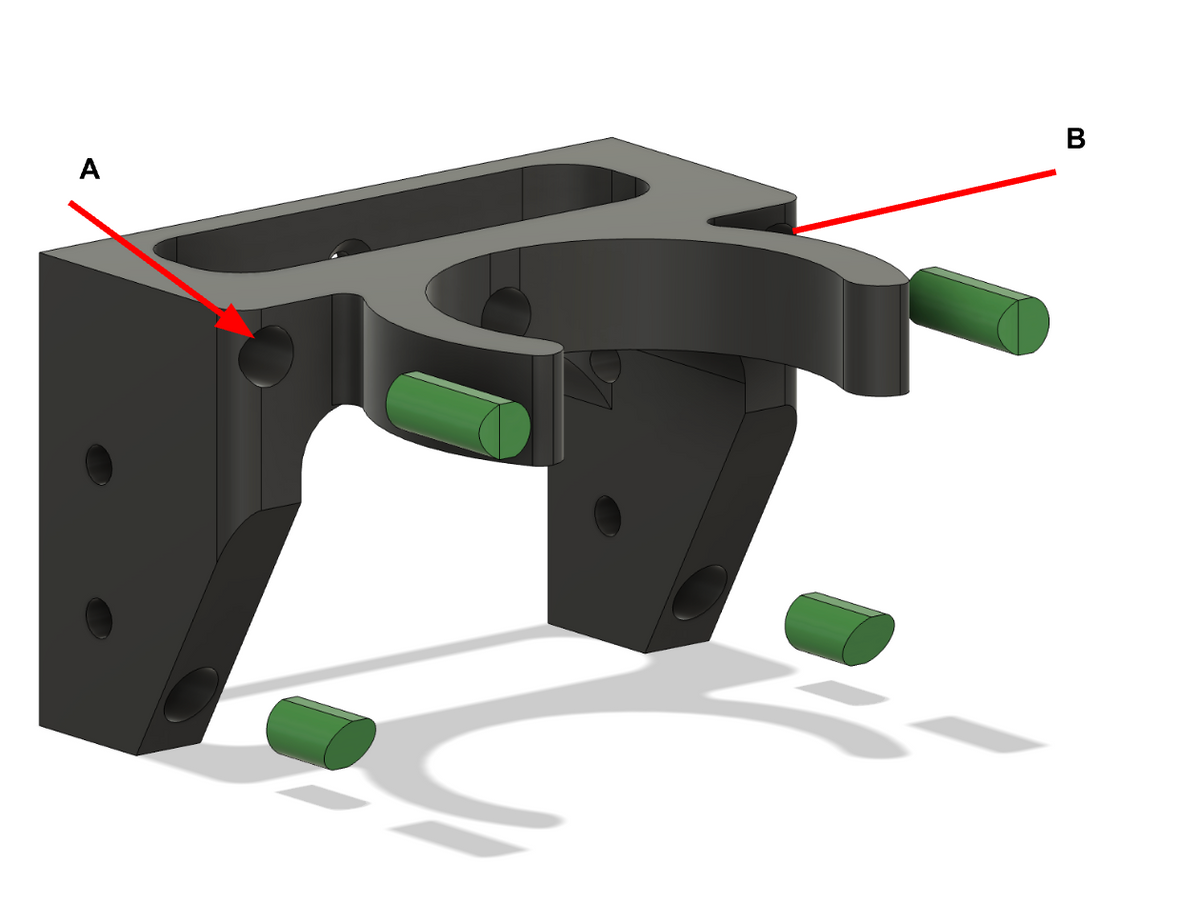

Step 2: Make sure that you use the uppermost screw holes (A & B In the image below). This helps the bracket create a firm grip on the router. It’s not required to use the central hole, but if you want to, go for it.

Step 3: Included are 4 hole plugs (pictured below in green) to hide the mounting holes. The plugs are color matched to your item.

Step 4: The long plugs go in the upper holes, and the shorter ones in the bottom holes

Step 5: The upper plugs have a slight taper to match the upper bevel

Step 6: The lower plugs are angled to match the bottom bracket

For any questions reated to your order please email orders@thenextgenworksh

TheNextGen Workshop assumes no liability for operator error, installation error, or damages caused while a plunge cut base is attached to tool. Incorrect installation and use could cause injury.
