Dewalt Plunge Cut Base Installation Instructions

Below you will find instructions on how to install your Dewalt Plunge Cut Base attachment.

Important Safety Instructions

Important: Follow all safety instructions and make sure batteries are removed prior to installation.

BE SURE to inspect attachment screws on side of body or depth stop before each use. This tool generates significant vibrations that could loosen screws over time.

Use all necessary safety equipment when using this attachment and an oscillating tool, use both hands for best results. Anti-slip pad can be replaced with high friction tape or rubber gasket if desired.

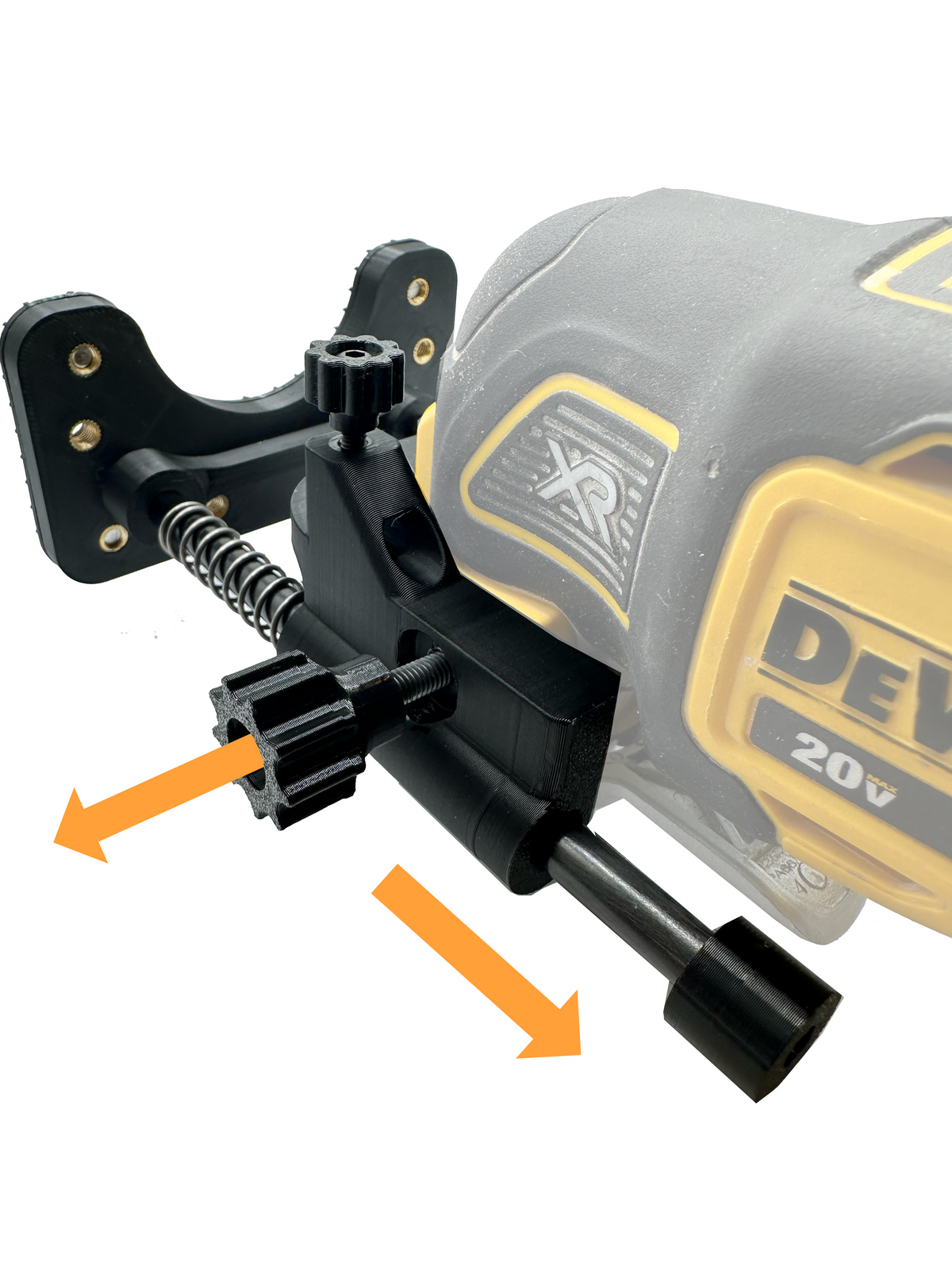

Attach To Tool

Step 1: Put oscillating tool on a flat surface with the trigger towards the ground

Step 2: Remove or loosen the side mounted thumb screws.

Step 3: With side mounted thumb screws removed slide the body mount onto the tool

Step 4: Once set, slide the thumb screws in and tighten until the mount is securely attached

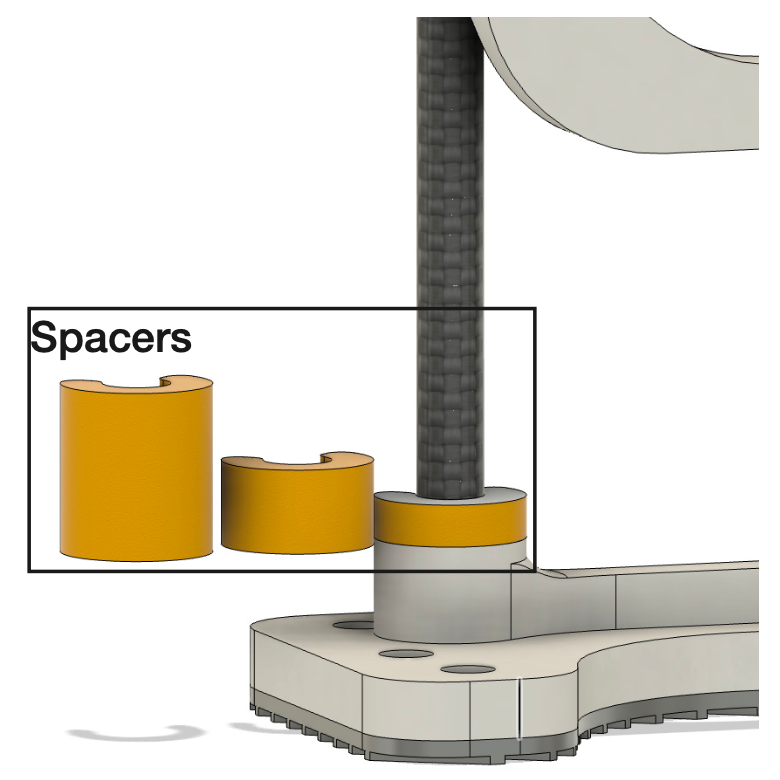

Spacers

There are 3 spacers (5mm 10mm 15mm) included that can be added or removed to offset longer blades.

Bottom platform can be flipped around if desired. Extra mounting points are for attachments like dust collection - coming soon!

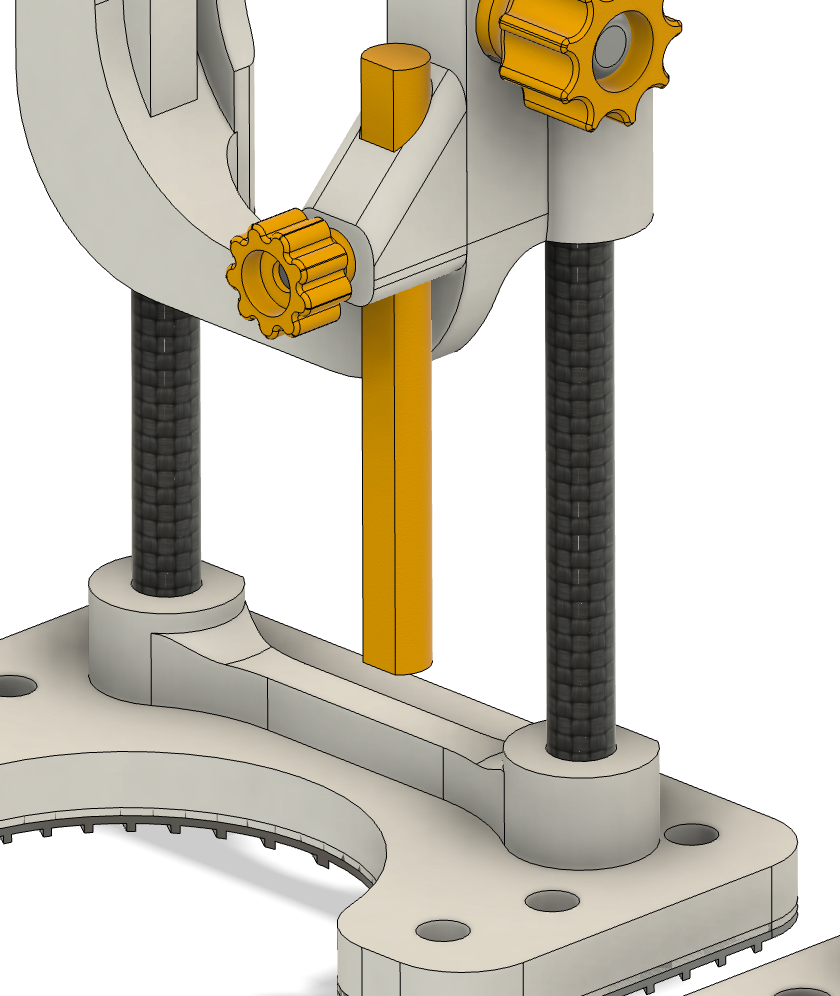

Using the depth stop

Due to the high oscillating vibrations, we have included a wave washer to offset the screw from loosening. Ensure that you tighten the depth stop as much as possible to prevent loosening while using the tool.

For any questions reated to your order please email orders@thenextgenworksh

TheNextGen Workshop assumes no liability for operator error, installation error, or damages caused while a plunge cut base is attached to tool. Incorrect installation and use could cause injury.
