Bosch Plunge Cut Base Instructions

Below you will find instructions on how to install your Bosch Plunge Cut Base attachment.

Important Safety Instructions

Important: Follow all safety instructions and make sure batteries are removed prior to installation.

BE SURE to inspect attachment screws on side of body or depth stop before each use. This tool generates significant vibrations that could loosen screws over time.

Use all necessary safety equipment when using this attachment and an oscillating tool, use both hands for best results. Anti-slip pad can be replaced with high friction tape or rubber gasket if desired.

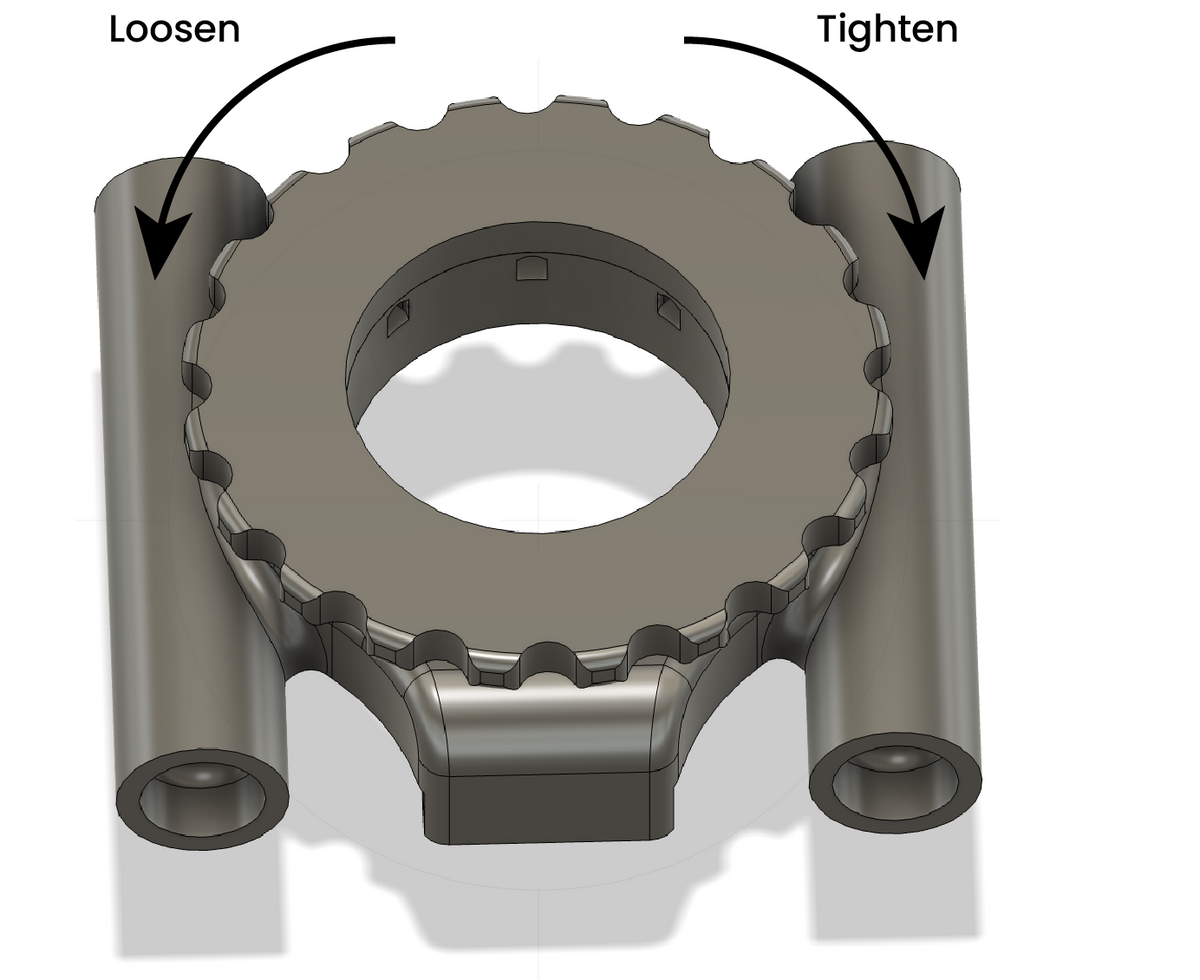

Loosen Ring

Step 1: Loosen the ring on the tool slightly, do not remove the tightening screw.

Step 2: Once loosened you will fit the tool over the oscillating tool.

Attach to Tool

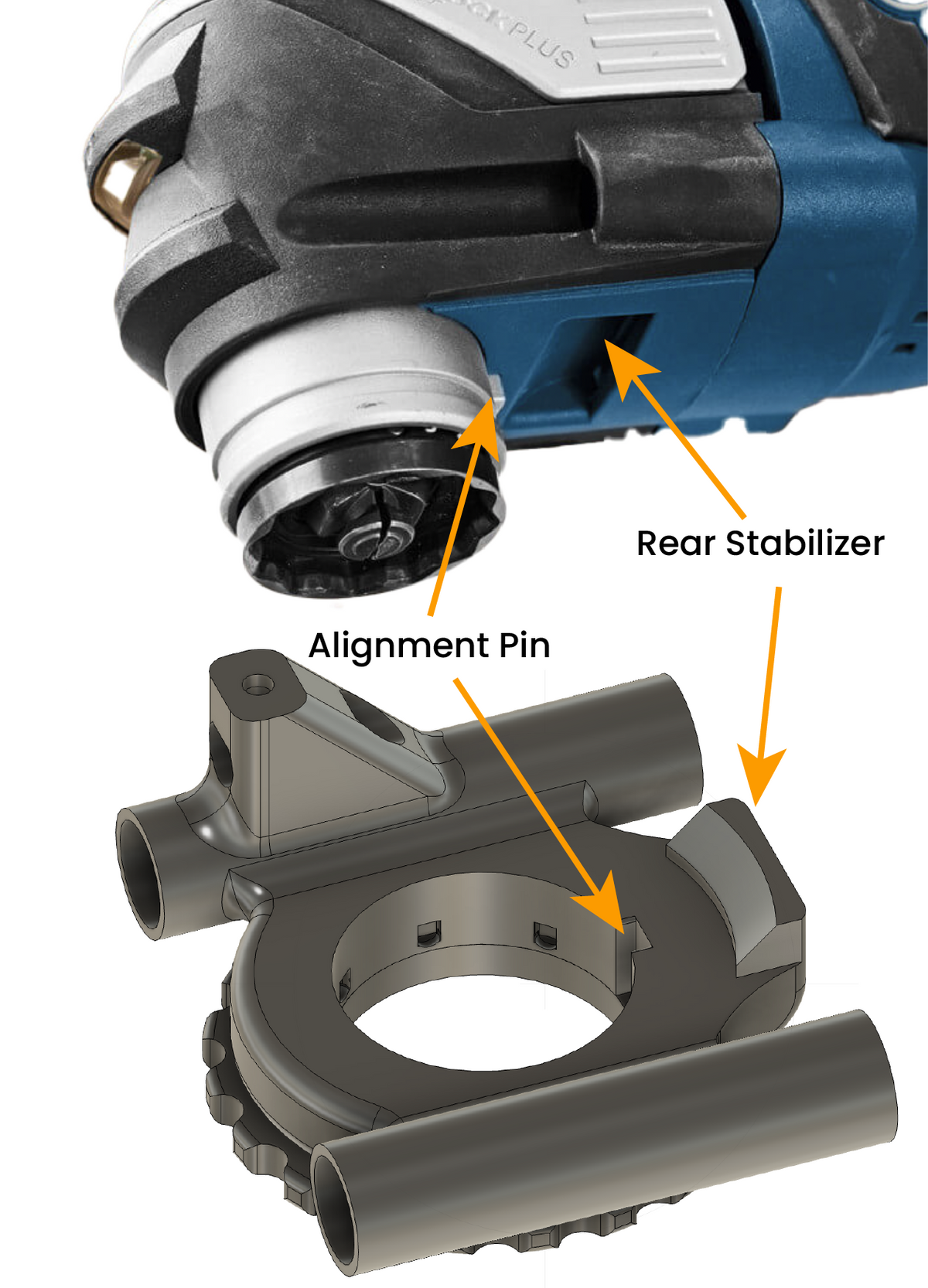

Step 3: To attach the mount to the tool, you will want to make sure the alignment opening on the mount is aligned with the pin that is found on the back of the tool "neck". There rear stabilizer on the mount will slot into the pocket right behind the neck of the tool

IMPORTANT!!!! You may have to press the stabilizer into the pocket, it can be a tight fit.

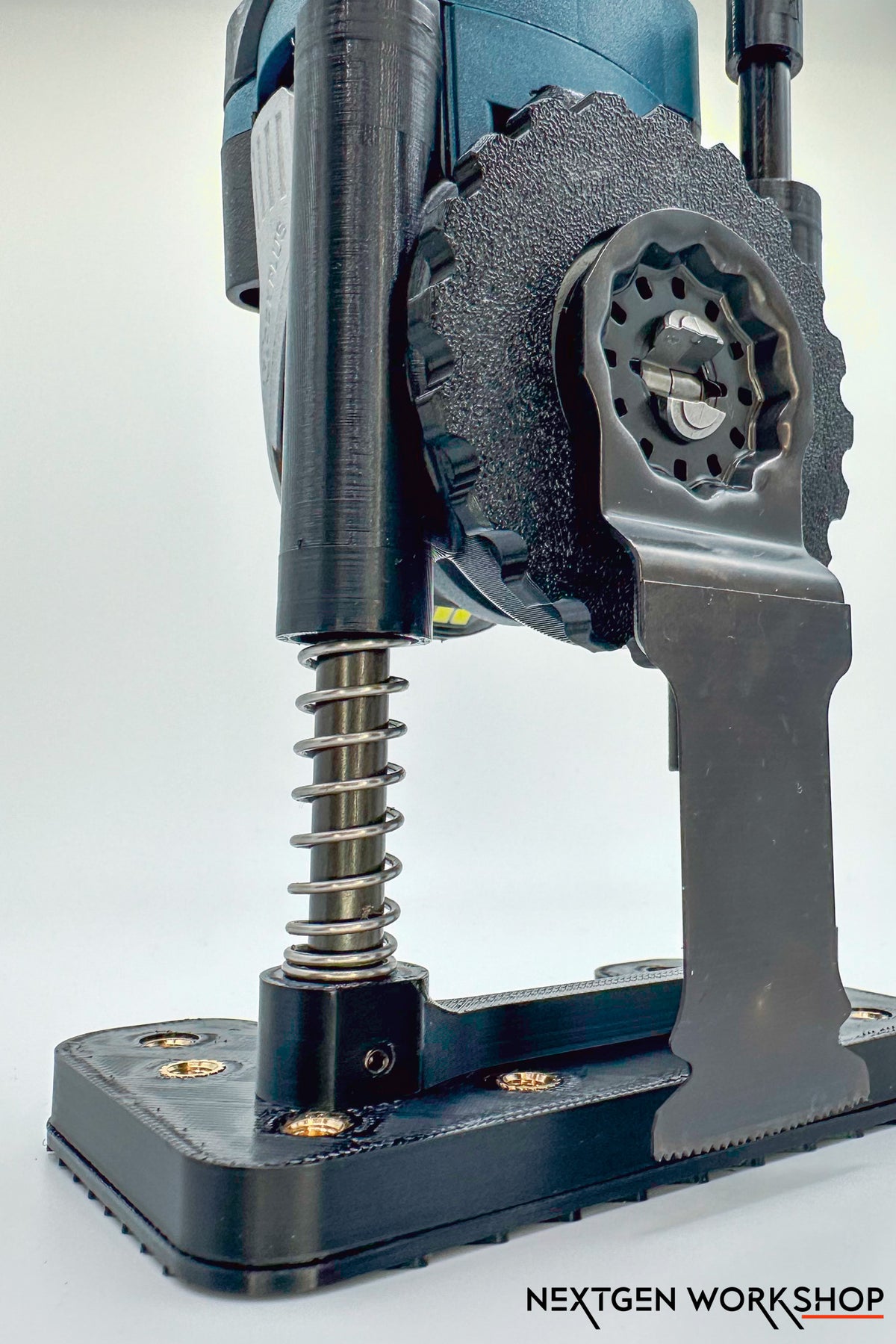

Tighten

Step 4: Tighten the ring until you start to feel a little resistance, this will secure the mount tot the tool and you are ready to attach your blade.

IMPORTANT!!!! Do not over-tighten the rign.

Spacers

There are 3 spacers (5mm 10mm 15mm) included that can be added or removed to offset longer blades.

Bottom platform can be flipped around if desired. Extra mounting points are for attachments like dust collection - coming soon!

Using the depth stop

Due to the high oscillating vibrations, we have included a wave washer to offset the screw from loosening. Ensure that you tighten the depth stop as much as possible to prevent loosening while using the tool.

For any questions reated to your order please email orders@thenextgenworkshop.com

TheNextGen Workshop assumes no liability for operator error, installation error, or damages caused while a plunge cut base is attached to tool. Incorrect installation and use could cause injury.
